High Speed Cylindrical Battery Electrode Inspection CCD Tester

Brand Name : ACEY

Model Number : ACEY-CCD01C

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 7280~8490/Set (negotiable)

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Warranty : 1 Year Warranty with Lifetime Support

After-sales Service : 24/7 Technical Support

Machine Power : 500W

Detection Range : L500*W400mm

Conveyor Specification : L1200*W800mm

Weight : 150kg

Machine Dimensions : L1370*W830*H1870mm

Contact Now

High Speed Cylindrical Battery Electrode Inspection CCD Tester
Product Overview

The ACEY-CCD01C CCD Tester is an automated visual inspection system designed specifically for lithium-ion battery pack assembly. Powered by an industrial computer and fitted with a high-definition camera, the device accurately identifies the polarity of battery terminals, thereby preventing short circuits caused by incorrect orientation during welding.

Featuring a conveyor belt design, it automatically returns or passes batteries based on inspection results, greatly enhancing the efficiency of the battery pack assembly line.

Process Flow
The cell enters the detection area → Sampling scan → Positive and negative detection → NG automatic detection → OK
Technical Specifications
Parameter Specification
XY Axis Stroke 1200*500 (customizable)
Effective working travel: 400*300mm
Motor Transmission Speed 300mm/S
Operating System Industrial computer + smart camera
Detection Method Assembly line style
Repeated Positioning Accuracy ±0.1mm
Detection Efficiency 1 second/PCS
Machine Power 500W
Machine Weight 150KG
Maximum Bearing Weight 60KG
Input Power Single-phase AC 220V/50Hz
Dimensions L1370*W830*H1870mm

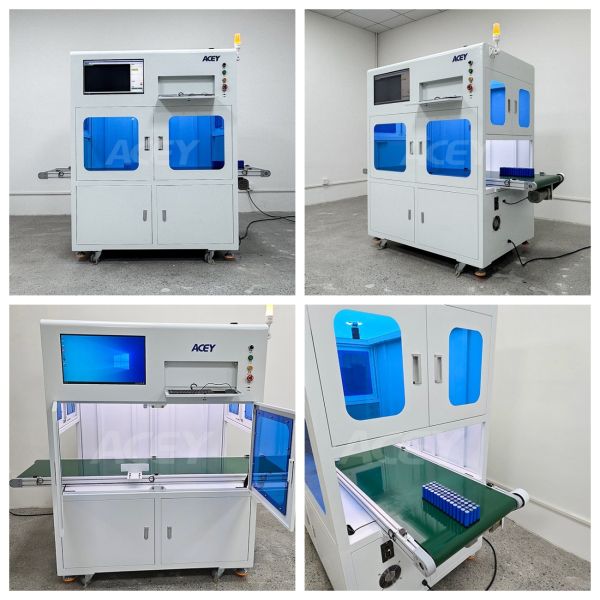

Product Display
High Speed Cylindrical Battery Electrode Inspection CCD Tester
